Material Download

After creating your light painting materials, you need to import them into the wand device before use. Firefly T1 supports two ways to import: wireless hotspot (no cable needed) and wired USB drive (via USB cable). Choose whichever fits your needs.

No data cable needed — use the Wi-Fi hotspot built into Firefly T1 and upload materials from your phone or computer's browser.

Step 1: Enter "Hotspot"​

On the main screen, select and enter the "Hotspot" feature.

Enter the Hotspot feature

Step 2: Connect to the Wi-Fi Hotspot​

After entering, the screen shows the Wi-Fi hotspot name and password. Connect your phone or computer to that hotspot.

Hotspot name and password

Step 3: Open the Management Page​

Once connected, open your browser and enter the address shown on the screen, 192.168.4.1, to access the Firefly T1 management page.

Step 4: Upload Materials​

Find the asset management section on the page and upload your finished images. Once uploaded, open the light painting wand app and your new materials will be ready to use.

Settings and asset management

Wired Connection​

Use the included Type-C data cable to connect Firefly T1 to your computer's USB port, then manage materials like a USB drive.

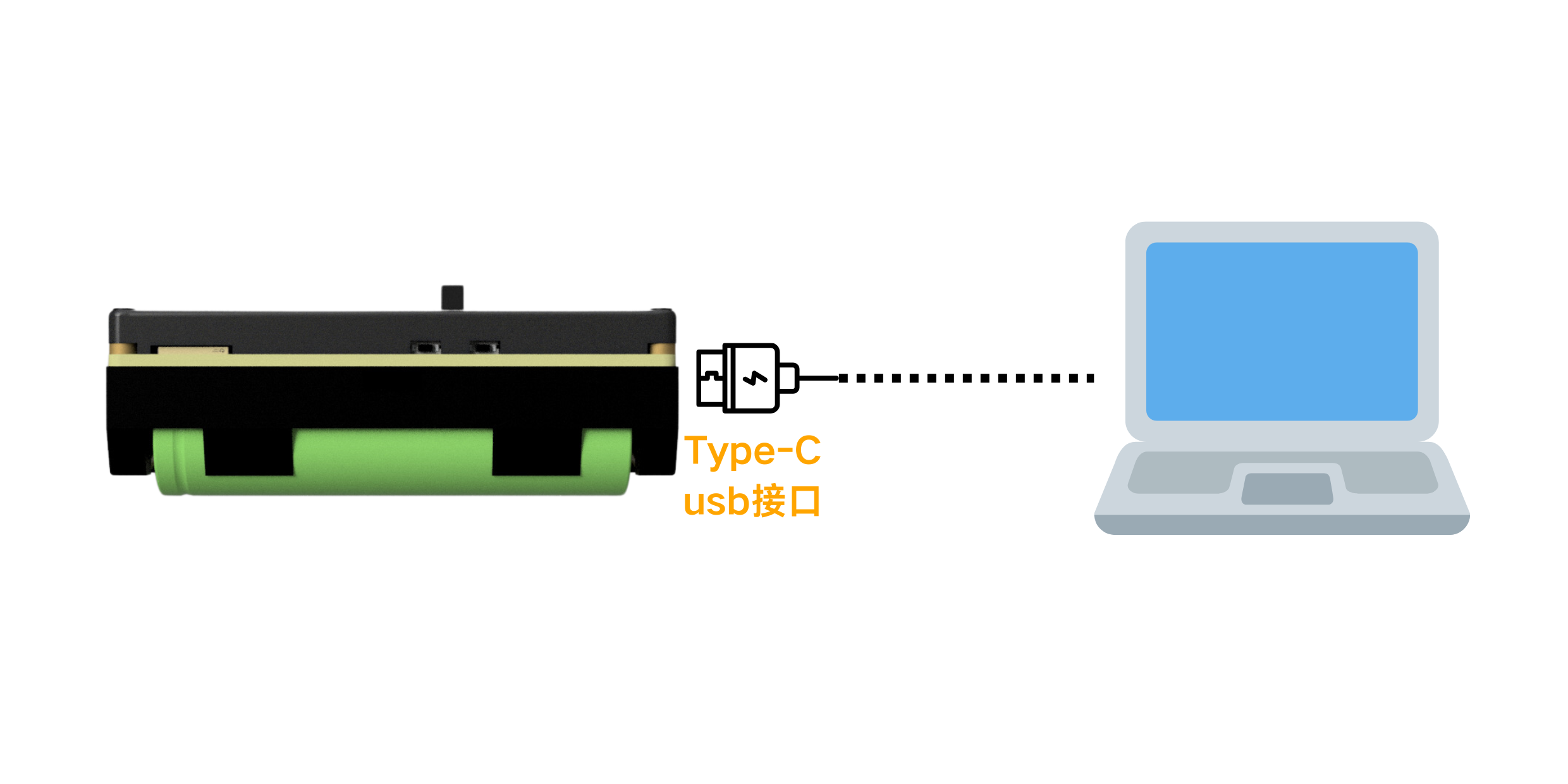

1. Connect to Computer​

Connect the Firefly T1 to your computer using a USB cable, then wait for the computer to detect a new USB drive.

Connection method:

USB connection method

USB drive detected by computer:

USB drive detected

2. Import Material Images​

1️⃣ Open the image folder​

Open the USB drive and navigate to the image folder (create it manually if it doesn't exist).

USB drive image folder

2️⃣ Copy material images​

Copy your finished main image (BMP) and preview image (JPG) into the image folder to complete the upload.

File naming

We recommend renaming material files with numbers or English characters (e.g., 001.bmp, 001.jpg). Avoid Chinese filenames, which the device may not recognize.

Copy main image and preview image

Play Materials After Import​

Once images are uploaded, open the light painting wand app on the Firefly T1 and select the imported images to start creating! 🎉

Material creation

If you haven't created materials yet, please refer to the Material Creation tutorial to learn how to make light painting images with the online tool or Photoshop.
